Garmin Panoptix Ice Bundle

The Garmin Panoptix Ice Fishing Bundle is just what you need for a successful ice fishing season. With sonar below the ice technology, you can see up to 100ft horizontally around you as well as fish that interact with your bait. You can also customize your screen view with ECHOMAP Plus 73cv screen to include flasher, map, and Panoptix views. With a rugged, portable carrying case included, your sonar can be protected and portability is easier than ever.

Features:

• Outstanding portability
• Built-in CHIRP sonar technology
• Sonar below the ice adapts to your fishing technique
• Combines multiple views so you can see what matters
• Ability to create custom combination screen to include map and sonar views
• Live scanning allows you to see fish and structure up to 200 ft. in any direction
• Two modes in one transducer locate schools of fish, and where to drill your next hole

Specs:

• Receiver: 5 Hz
• Weight: 1.7 lbs.
• Water rating: IPX7
• Display Type: WVGA
• Power Consumption 6.2W
• Dimensions: 9.8 x 5.5 x 2in.
• Display size: 6 x 3.6 x 7in. diagonal
• Display resolution: 800 x 480 pixels
• Antenna: Internal or external over NMEA 2000
• Garmin Marine Network™ ports: 1 Panoptix™ port
• Transmit power: GT10HN-IF Transducer: 500 W (RMS)/ 4,000 W (peak to peak)
• Maximum depth: Panoptix PS22-TR: 300ft. (down and forward) GT10HN: 800 ft. freshwater

Included in the Box:

• Foam float
• Power cable
• Battery charger
• Cable grommet
• Documentation

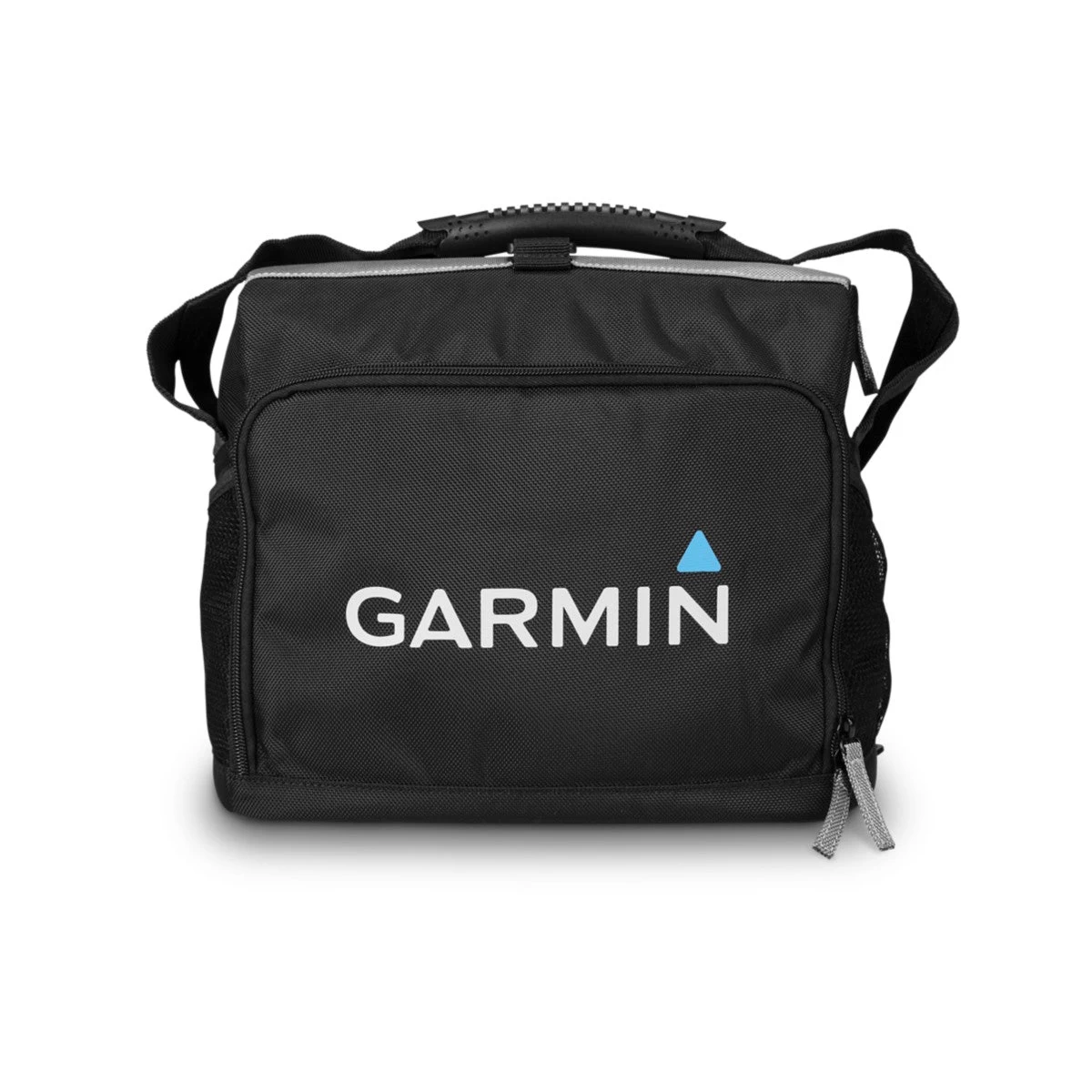

• Bag with handle
• Tilt/swivel mount
• Rechargeable battery
• GT10HN-IF transducer
• ECHOMAP™ Plus 73cv
• Transducer adapter cable
• Panoptix ice fishing mount
• Panoptix™ PS22-TR transducer
